New and Used Motorcycles for Sale » Honda » CRF230F
Model Quick Search

$3,599.00
$3,149.00
$450.00

2006 Honda CRF230F

Save $450

Now until September 30, 2010
$450.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form

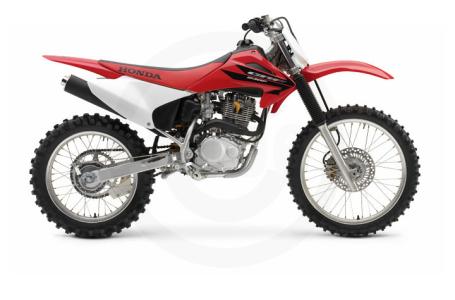

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The perfect blend of performance: dependable 223cc engine, a wide, four-stroke powerband, great suspension and electric start — packaged in a bike geared toward family fun

    Engine
    • Engine Type: 223cc air-cooled single-cylinder four-stroke
    • Bore and Stroke: 65.5mm x 66.2mm
    • Compression Ratio: 9.0:1
    • Valve Train: SOHC; two-valve
    • Carburetion: 26mm piston-valve
    • Ignition: CDI
    Drive Train
    • Transmission: Six-speed
    • Final Drive: #520 O-ring-sealed chain; 13T/50T
    Chassis/Suspension/Brakes
    • Front Suspension: 37mm leading-axle Showa fork; 9.5-inch travel
    • Rear Suspension: Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
    • Front Brake: Single 240mm disc
    • Rear Brake: Drum
    • Front Tire: 80/100-21
    • Rear Tire: 100/100-18
    Dimensions
    • Rake: 27.3 degrees
    • Trail: 112.0mm (4.4 inches)
    • Wheelbase: 54.1 inches
    • Seat Height: 34.1 inches
    • Ground Clearance: 11.7 inches
    • Dry Weight: 238.0 pounds
    • Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
    Other
    • Available Colors: Red Model ID: CRF230F
    Factory Warranty Information
    • 6 months: Coverage of defects in materials and workmanship

    Specifications

    Engine
    Engine Type Single-cylinder four-stroke
    Displacement 223 cc
    Bore and Stroke 65.5 x 66.2 mm
    Cooling Air-cooled
    Compression Ratio 9.0:1
    Fuel System 26 mm piston-valve
    Ignition CDI
    Chassis
    Front Suspension 37 mm leading-axle Showa fork; 9.5-inch travel
    Front Brakes Single 240 mm disc
    Front Tire 80/100-21
    Rear Suspension Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
    Rear Brakes Drum
    Rear Tire 100/100-18
    Dimensions
    Dry Weight 238.0 lbs.
    Fuel Capacity 2.2 gallons, including 0.4-gallon reserve
    Wheelbase 54.1 in.
    Ground Clearance 11.7 in.
    Seat Height 34.1 inches
    Trail 112.0 mm (4.4 inches)
    Rake 27.3 degrees
    Transmission
    Transmission Six-speed
    Final Drive #520 O-ring-sealed chain; 13T/50T
    General
    Colors Red
    Warranty 6 months: Coverage of defects in materials and workmanship

    Compare Models

    		 Print








    Year 2006
    Manufacturer Honda
    Model CRF230F
    Style Off-Road
    MSRP* $3,599.00
    Chassis
    Front Suspension 37 mm leading-axle Showa fork; 9.5-inch travel
    Front Brakes Single 240 mm disc
    Front Tire 80/100-21
    Rear Suspension Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
    Rear Brakes Drum
    Rear Tire 100/100-18
    Dimensions
    Dry Weight 238.0 lbs.
    Fuel Capacity 2.2 gallons, including 0.4-gallon reserve
    Wheelbase 54.1 in.
    Ground Clearance 11.7 in.
    Seat Height 34.1 inches
    Trail 112.0 mm (4.4 inches)
    Rake 27.3 degrees
    Engine
    Engine Type Single-cylinder four-stroke
    Displacement 223 cc
    Bore and Stroke 65.5 x 66.2 mm
    Cooling Air-cooled
    Compression Ratio 9.0:1
    Fuel System 26 mm piston-valve
    Ignition CDI
    General
    Colors Red
    Warranty 6 months: Coverage of defects in materials and workmanship
    Transmission
    Transmission Six-speed
    Final Drive #520 O-ring-sealed chain; 13T/50T
