New and Used Motorcycles for Sale » KTM » 65 SX
Model Quick Search

$3,748.00

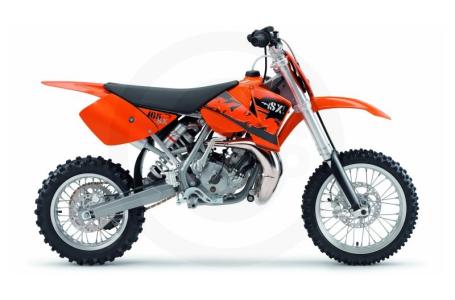

2006 KTM 65 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Six gear transmission, hydraulic clutch, Marzocchi upside down fork, WP- shock absorber – all fully adjustable. Seat level adjustable from 750 mm. Ideal for 6-9-year-olds.

    Engine
    • Engine Type: single cylinder, 2-stroke
    • Displacement: 64.9 cc
    • Bore / stroke: 45 / 40.8 mm (1.77 / 1.61")
    • Starter: Kick-starter
    • Gear box: 6 gears
    • Carburetor: Mikuni VM 24
    • Engine lubrication: mixture lubrication 1:60
    • Transmission lubrication: 0,3 l Motorex Topspeed 15W50
    • Primary ratio: 23:75
    • Final drive: 14:50
    • Cooling: liquid cooled
    • Clutch: wet multi-disc clutch, operated hydraulically
    • Ignition: Moric digital 2M1
    Chassis
    • Frame: chromium molybdenum central-type frame
    • Subframe: Aluminum
    • Handlebar: Aluminum - 22 mm (0.87")
    • Front suspension: Marzocchi USD - 35 mm (1.38")
    • Rear suspension: WP monoshock
    • Suspension travel front / rear: 220/270 mm (8.66/10.63")
    • Front brake: disc brake - 200 mm (7.87")
    • Rear brake: disc brake - 160 mm (6.3")
    • Front / rear rim: 1.6 x 14"; 1.6 x 12" Alu
    • Front / rear tire: 60/100-14"; 80/100-12"
    • Chain: 1/2 x 1/4" 112 R
    • Main silencer: Aluminum
    • Steering head angle: 64.5°
    • Wheel base: 1137 mm (44.76")
    • Ground clearance (unloaded): 290 mm (11.42")
    • Seat height: 750 mm (29.53")
    • Fuel capacity: approx. 3.3 liters (0.87 gal)
    • Weight (ready to race, no fuel): approx. 55.6 kg (122.6 lbs)

    Specifications

    Engine
    Engine Type Single cylinder 2-stroke
    Displacement 64.9 cc
    Bore and Stroke 45 x 40.8 mm
    Cooling Liquid
    Fuel System Mikuni VM 24
    Ignition Moric digital 2M1
    Chassis
    Front Suspension Marzocchi USD 35 mm (1.38"), 220 mm (8.66") travel
    Front Brakes Disc brake 200 mm (7.87")
    Front Tire 60/100-14"
    Rear Suspension WP monoshock, 270 mm, (10.63")
    Rear Brakes Disc brake 160 mm (6.3")
    Rear Tire 60/100-12"
    Dimensions
    Dry Weight Approx 55.6 kg (122.6 lbs.)
    Fuel Capacity Approx. 3.3 liters (0.87 gal.)
    Wheelbase 1137 mm (44.76")
    Ground Clearance 290 mm (11.42")
    Seat Height 750 mm
    Rake 64.5 degrees
    Transmission
    Transmission 6 gears
    Final Drive 14:50
    General
    Colors Orange

    Compare Models

    		 Print








    Year 2006
    Manufacturer KTM
    Model 65 SX
    Style Youth
    Chassis
    Front Suspension Marzocchi USD 35 mm (1.38"), 220 mm (8.66") travel
    Front Brakes Disc brake 200 mm (7.87")
    Front Tire 60/100-14"
    Rear Suspension WP monoshock, 270 mm, (10.63")
    Rear Brakes Disc brake 160 mm (6.3")
    Rear Tire 60/100-12"
    Dimensions
    Dry Weight Approx 55.6 kg (122.6 lbs.)
    Fuel Capacity Approx. 3.3 liters (0.87 gal.)
    Wheelbase 1137 mm (44.76")
    Ground Clearance 290 mm (11.42")
    Seat Height 750 mm
    Trail
    Rake 64.5 degrees
    Engine
    Engine Type Single cylinder 2-stroke
    Displacement 64.9 cc
    Bore and Stroke 45 x 40.8 mm
    Cooling Liquid
    Compression Ratio
    Fuel System Mikuni VM 24
    Ignition Moric digital 2M1
    General
    Colors Orange
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 14:50
