New and Used Motorcycles for Sale » KTM » 450 SX
Model Quick Search

$6,998.00

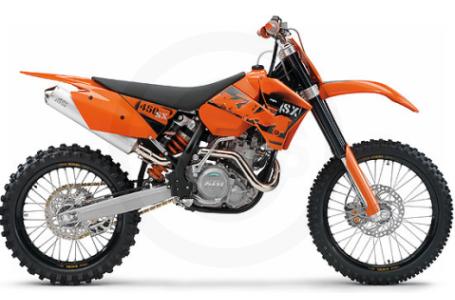

2006 KTM 450 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Which one of us wouldn’t gladly have a MX1-Racer in the garage? With the KTM 450 SX you are damn close to doing just that. It is the basis of our racing successes in the top class and with its agile handling and linear engine characteristics, it’s very convincing. Modern styling, noble details and high-quality components make it clear once more: the 450 SX is the one to win on.

    Engine
    • Engine Type: single cylinder, 4-stroke
    • Displacement: 449.39 cc
    • Bore / stroke: 95 / 63.4 mm (2.61 / 2.83")
    • Compression ratio: 12:1
    • Starter: kick starter
    • Transmission: 4 gears
    • Carburetor: Keihin MX FCR 41
    • Control: 4 V / OHC with roller rocker lever
    • Lubrication: pressure lubrication with 2 Eaton pumps
    • Engine oil: 1,2l Motorex Power Synt 4T 10W-50
    • Primary ratio: 33:76
    • Final drive: 14:52
    • Cooling: liquid cooled
    • Clutch: wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital 4K-3A
    Chassis
    • Frame: central double-cradle-type 25 CrMo4
    • Subframe: aluminum 7020
    • Handlebar: Renthal - 28/22 mm (1.10/0.87")
    • Front suspension: WP-USD - 48 mm (1.89")
    • Rear suspension: WP-PDS shock absorber
    • Suspension travel front/rear: 300 / 335 mm (11.81/13.19")
    • Front / rear brakes: disc brakes 260 / 220 mm
    • Front / rear rims: 1.60 x 21"; 2.15 x 19"
    • Front / rear tires: 80/100-21"; 110/90-19"
    • Main silencer: aluminum
    • Steering head angle: 63.5°
    • Wheel caster: 112 mm (4.41")
    • Wheelbase: 1481±10 mm (58.31±0.39")
    • Ground clearance (unloaded): 380mm (15")
    • Seat height: 925 mm (36.42")
    • Fuel capacity: approx. 7 l (1.85 gal.)
    • Weight (ready to race, no fuel): approx. 105.2 kg (231.93 lbs.)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 449.39 cc
    Bore and Stroke 95 x 63.4 mm (2.61" x 2.83")
    Cooling Liquid
    Compression Ratio 12:1
    Fuel System Keihin MX FCR 41
    Ignition Kokusan digital 4K-3A
    Chassis
    Front Suspension WP-USD - 48 mm (1.89"), 300 mm (11.81") travel
    Front Brakes Disc brake 260 mm
    Front Tire 80/100-21"
    Rear Suspension WP-PDS shock absorber, 335 mm (13.19") travel
    Rear Brakes Disc brakes 220 mm
    Rear Tire 110/90-19"
    Dimensions
    Dry Weight approx. 105.2 kg (231.93 lbs.)
    Fuel Capacity approx. 7 l (1.85 gal.)
    Wheelbase 1481±10 mm (58.31±0.39")
    Ground Clearance 380mm (15")
    Seat Height 925 mm (36.42")
    Rake 63.5 degrees
    Transmission
    Transmission 4 gears
    Final Drive 14:52
    General
    Colors Orange

    Compare Models

    		 Print








    Year 2006
    Manufacturer KTM
    Model 450 SX
    Style Motocross
    Chassis
    Front Suspension WP-USD - 48 mm (1.89"), 300 mm (11.81") travel
    Front Brakes Disc brake 260 mm
    Front Tire 80/100-21"
    Rear Suspension WP-PDS shock absorber, 335 mm (13.19") travel
    Rear Brakes Disc brakes 220 mm
    Rear Tire 110/90-19"
    Dimensions
    Dry Weight approx. 105.2 kg (231.93 lbs.)
    Fuel Capacity approx. 7 l (1.85 gal.)
    Wheelbase 1481±10 mm (58.31±0.39")
    Ground Clearance 380mm (15")
    Seat Height 925 mm (36.42")
    Trail
    Rake 63.5 degrees
    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 449.39 cc
    Bore and Stroke 95 x 63.4 mm (2.61" x 2.83")
    Cooling Liquid
    Compression Ratio 12:1
    Fuel System Keihin MX FCR 41
    Ignition Kokusan digital 4K-3A
    General
    Colors Orange
    Warranty
    Transmission
    Transmission 4 gears
    Final Drive 14:52
