New and Used Motorcycles for Sale » KTM » 85 SX (19/16)
Model Quick Search

$4,298.00

2006 KTM 85 SX (19/16)
Request a Quote Financing Calculator Request a Brochure Financing Form

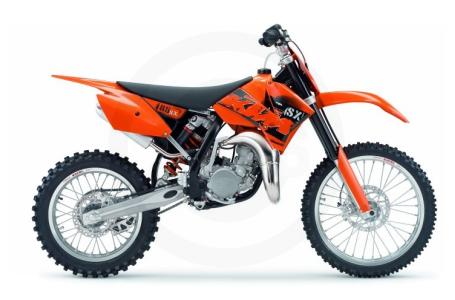

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Fully revised, grown-up racing bike with more stable frame, 43 mm WP Upside Down fork and fully adjustable PDS system, strengthened clutch and transmission, new rear disk brake and much more. The centrifugal exhaust control system provides plenty of torque and top end performance. Seat height starts at 900 mm, for racers between 11-15 years.

    Engine
    • Engine Type: single cylinder, 2-stroke
    • Displacement: 84.9 cc
    • Bore / stroke: 47 / 48.95 mm (1.85 / 1.93")
    • Starter: Kick-starter
    • Gear box: 6 gears
    • Carburetor: Keihin PWK 28
    • Engine lubrication: mixture lubrication 1:40
    • Transmission lubrication: 0,5 l Motorex Topspeed 4T
    • Primary ratio: 19:66
    • Final drive14:49
    • Cooling: liquid cooled
    • Clutch: wet multi-disc clutch, operated hydraulically
    • Ignition: Moric digital 2M1
    Chassis
    • Frame: chromium molybdenum
    • Subframe: Aluminum
    • HandlebarAlu - 22 mm (0.87")
    • Front suspension: WP USD - 43 mm (1.69")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front / rear: 275/300 mm (10.83/11.81")
    • Front brake: disc brake - 220 mm (8.66")
    • Rear brake: disc brake - 200 mm (7.87")
    • Front / rear rim: 1.6 x 19"; 1.85 x 16" Alu
    • Front / rear tire: 70/100-19"; 90/100-16"
    • Chain: 1/2 x 5/16" 124 R
    • Main silencer: Aluminum
    • Steering head angle: 66°
    • Wheel base: 1290 mm (50.79")
    • Ground clearance (unloaded): 415 mm (16.34")
    • Seat height: approx. 900 mm (35.43")
    • Fuel capacity: approx. 5 liters (1.32 gal)
    • Weight (ready to race, no fuel): approx. 68 kg (129.94 lbs)

    Specifications

    Engine
    Engine Type Single cylinder 2-stroke
    Displacement 84.9 cc
    Bore and Stroke 47 x 48.95 mm (1.85" x 1.93")
    Cooling Liquid
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    Chassis
    Front Suspension WP USD 43 mm (1.69"), 275 mm (10.83") travel
    Front Brakes Disc brake 220 mm (8.66")
    Front Tire 70/100-19"
    Rear Suspension WP monoshock PDS, 300 mm (11.81") travel
    Rear Brakes Disc brake 200 mm
    Rear Tire 70/100-19"
    Dimensions
    Dry Weight approx. 68 kg (129.94 lbs.)
    Fuel Capacity approx. 5 l (1.32 gal.)
    Wheelbase 1290 mm (50.79")
    Ground Clearance 415 mm (16.34")
    Seat Height approx. 900 mm (35.43")
    Rake 66 degrees
    Transmission
    Transmission 6 gears
    Final Drive 14:49
    General
    Colors Orange

    Compare Models

    		 Print








    Year 2006
    Manufacturer KTM
    Model 85 SX (19/16)
    Style Youth
    Chassis
    Front Suspension WP USD 43 mm (1.69"), 275 mm (10.83") travel
    Front Brakes Disc brake 220 mm (8.66")
    Front Tire 70/100-19"
    Rear Suspension WP monoshock PDS, 300 mm (11.81") travel
    Rear Brakes Disc brake 200 mm
    Rear Tire 70/100-19"
    Dimensions
    Dry Weight approx. 68 kg (129.94 lbs.)
    Fuel Capacity approx. 5 l (1.32 gal.)
    Wheelbase 1290 mm (50.79")
    Ground Clearance 415 mm (16.34")
    Seat Height approx. 900 mm (35.43")
    Trail
    Rake 66 degrees
    Engine
    Engine Type Single cylinder 2-stroke
    Displacement 84.9 cc
    Bore and Stroke 47 x 48.95 mm (1.85" x 1.93")
    Cooling Liquid
    Compression Ratio
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    General
    Colors Orange
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 14:49
