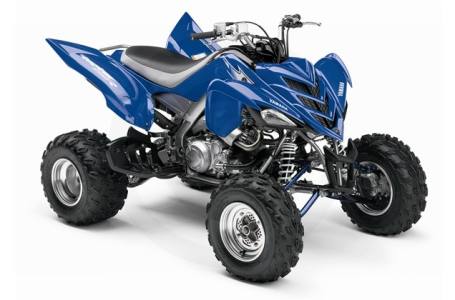

2007 Yamaha Raptor 700R

Save $1200

Now until September 30, 2010
$1,200.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The most powerful, sharpest-handling raptor ever. Fuel-injected and packing serious hardware, this one's built to rule the off-road roost.

    Key Features
    • All new in 2006, the Raptor 700R was named ATV Illustrated’s “Sport ATV of the Year” in its rookie season (a tie with our own YFZ450).
    • Raptor 700R is designed to dominate in the widest range of riding environments, from tight woods to desert to dunes.
    • A 686cc Yamaha fuel-injected engine makes this the most powerful sport ATV ever, with big torque right off idle transitioning into a fat midrange and monstrous top end.
    • Yamaha fuel injection means consistently excellent engine performance in a wide range of conditions, elevations, and temperatures.
    • Hybrid steel and aluminum frame with a Controlled Fill aluminum subframe and cast swingarm pivot combine to produce a super-strong structure and the lightest ATV in its class.
    • Aggressive new styling reflects Raptor 700R’s intent and YFZ-inspired handling means it walks the walk too.
    • Long-travel suspension—9.1 inches front, 10.1 rear—a cush seat and excellent ergonomics make the Raptor 700R comfortable to ride hard all day long.
    New for 2007
    • New front brake master cylinder features an adjustable lever for increased comfort and feel.
    • New, drilled rear brake disc reduces unsprung weight for improved suspension action and excellent braking feel.
    Engine
    • Forged lightweight piston, connecting rod and crankshaft in the 686cc engine are light and strong, for a hardhitting, quick-revving powerplant that revs all the way to 9000 RPM. Dual counterbalancers keep it smooth.
    • Yamaha fuel injection means consistently excellent engine performance in a wide range of conditions, elevations and temperatures.
    • Competition-spec dry sump lubrication system boosts usable horsepower and keeps overall engine size more compact.
    • Digital TCI w/16-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
    • Reliable, pushbutton electric start in any gear adds extra convenience.
    • Race-bred five-speed transmission with reverse, along with Raptor 700R’s monstrous powerband mean there’s a choice of gears in just about all situations.
    • YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power. Heavy-duty clutch features extra sturdy basket and plates designed to harness the Raptor 700R’s power.
    • Easy-to-reach oil filter and tool-free air filter.
    Chassis/Suspension
    • State-of-the-art chassis combines a steel front section with an aluminum rear section and detachable subframe to create a super-strong structure as well as the lightest ATV in its class.
    • Compact, CAD-designed chassis design creates the ideal wheelbase and low center of gravity for light, quick, super-accurate steering.
    • Independent aluminum upper A-arm front suspension features preload-adjustable shocks and 9.1-inch travel for outstanding ride quality.
    • YZ-style piggyback rear shock gives 10.1-inch wheel travel for maximum sport versatility with preload, compression and rebound adjustment.
    • All-new cast aluminum swingarm carries a chain quick-adjust mechanism that takes most of the work out of that task.
    • Handlebar-mounted flip-type parking brake lever and new rear brake caliper that adjust automatically.
    • All-new high-performance 21x7-10 front and 20x10-9 rear Dunlop radials with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
    • Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
    • YFZ450 twin-aluminum-piston front disc brakes and new rear disc deliver tremendous stopping power with less unsprung weight.
    • YFZ450 45mm serrated footpegs provide excellent boot traction.
    • Controlled Fill aluminum subframe is light and strong. So’s the composite front grab bar.
    Additional Features
    • Long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
    • YFZ450 30-watt multireflector krypton headlights set back in the front cowl add the perfect no-compromises sporting accent, and an LED taillight provides great visibility.
    • Large-capacity, 2.9-gallon fuel tank and Yamaha fuel injection (YFI) means more time on the trail between fill-ups.
    Engine Specifications
    • Type: 686cc, liquid-cooled, SOHC 4-stroke single w/fan, 4-valve
    • Bore x Stroke: 102mm x 84mm
    • Compression Ratio: 9.2:1
    • Carburetion: Yamaha Fuel Injection (YFI) , 44mm
    • Ignition: 16-Bit ECU
    • Starting System: Electric
    • Transmission: 5-Speed manual clutch w/reverse
    • Drive Train: 2WD; sealed o-ring chain, eccentric adjustment
    Chassis Specifications
    • Suspension/Front: Independent double wishbone, 9.1” w/5-way preload adjustment
    • Suspension/Rear: Cast aluminum swing arm, 10.1” w/rebound, compression and threaded preload adjustment
    • Brakes/Front: Dual ventilated hydraulic disc, twin pistons
    • Brakes/Rear: Ventilated hydraulic disc, self-adjusting park brake function
    • Tires/Front: AT21 x 7-10 radial
    • Tires/Rear: AT20 x 10-9 radial
    Dimensions
    • L x W x H: 72.6” (1,846 mm) x 46.1” (1,170 mm) x 44.5” (1,130 mm)
    • Seat Height: 32” (815 mm)
    • Wheelbase: 50.4” (1,280 mm)
    • Ground Clearance: 4.4” (112 mm)
    • Fuel Capacity: 2.9 gal. (11 l)
    • Dry Weight: 396 lb. (180 kg)
    Other
    • Lighting: Dual 30W Krypton multireflecter headlights and 3.9/0.5W brake light
    • Warranty: 6 Month (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type SOHC 4-stroke 4-valve
    Displacement 686cc
    Bore x Stroke 102mm x 84mm
    Cylinders 1
    Engine Cooling Liquid
    Fuel System Yamaha Fuel Injection (YFI), 44mm
    Starting System Electric
    Chassis
    Front Suspension Independent double wishbone, w/5-way preload adjustment
    Front Travel 9.1 in.
    Front Brake Type Dual ventilated hydraulic disc, twin pistons
    Front Tires AT21 x 7-10 radial
    Rear Suspension Cast aluminum swing arm, compression and threaded preload adjustment
    Rear Travel 10.1 in. w/rebound
    Rear Brake Type Ventilated hydraulic disc, self-adjusting park brake function
    Rear Tires AT20 x 10-9 radial
    Dimensions/Capacities
    Dry Weight 396 lbs. (180 kg)
    Fuel Capacity 2.9 gal (11 l)
    Ground Clearance 4.4 in. (112 mm)
    Machine Dimensions (LxWxH) 72.6" (1,845 mm) x 46.1" (1,170 mm) x 44.5" (1,130 mm)
    Wheelbase 50.4 in. (1,280 mm)
    Drive Train
    Drive Train 2WD; sealed o-ring chain, eccentric adjustment
    Transmission 5-Speed manual clutch w/reverse
    General
    Lighting Dual 30W Krypton multireflecter headlights and 3.9/0.5W brake light
    Colors Team Yamaha Blue, Gray
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2007
    Manufacturer Yamaha
    Model Raptor 700R
    Style Sport
    MSRP* $7,199.00
    Chassis
    Front Suspension Independent double wishbone, w/5-way preload adjustment
    Front Travel 9.1 in.
    Front Brake Type Dual ventilated hydraulic disc, twin pistons
    Front Tires AT21 x 7-10 radial
    Rear Suspension Cast aluminum swing arm, compression and threaded preload adjustment
    Rear Travel 10.1 in. w/rebound
    Rear Brake Type Ventilated hydraulic disc, self-adjusting park brake function
    Rear Tires AT20 x 10-9 radial
    Frame
    Dimensions/Capacities
    Dry Weight 396 lbs. (180 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.9 gal (11 l)
    Ground Clearance 4.4 in. (112 mm)
    Machine Dimensions (LxWxH) 72.6" (1,845 mm) x 46.1" (1,170 mm) x 44.5" (1,130 mm)
    Wheelbase 50.4 in. (1,280 mm)
    Drive Train
    Drive Train 2WD; sealed o-ring chain, eccentric adjustment
    Final Drive
    Transmission 5-Speed manual clutch w/reverse
    Engine
    Engine Type SOHC 4-stroke 4-valve
    Displacement 686cc
    Bore x Stroke 102mm x 84mm
    Cylinders 1
    Engine Cooling Liquid
    Fuel System Yamaha Fuel Injection (YFI), 44mm
    Starting System Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30W Krypton multireflecter headlights and 3.9/0.5W brake light
    Colors Team Yamaha Blue, Gray
    Warranty 6 Month (Limited Factory Warranty)
